MuJoCo Benchmark Results

SLM Lab v5.2 validates PPO, SAC, and CrossQ on Gymnasium MuJoCo environments. MuJoCo (Multi-Joint dynamics with Contact) provides physics simulation for continuous control tasks ranging from simple pendulums to complex humanoid locomotion.

Results below are from January–March 2026 benchmark runs using MuJoCo v5 environments.

All trained models and metrics are publicly available on HuggingFace.

Methodology

Results show Trial-level performance:

1. Trial = 4 Sessions with different random seeds

2. Session = One complete training run

3. Score = Final 100-checkpoint moving average (total_reward_ma)

The trial score is the mean across 4 sessions, providing statistically meaningful results.

Standardized Settings

Category	num_envs	max_frame	log_frequency	ASHA grace_period
MuJoCo	16	4e6-10e6	10000	1e5-1e6

The grace_period is the minimum frames before ASHA early stopping can terminate underperforming trials.

Algorithms: PPO, SAC, and CrossQ. Network: MLP [256,256], orthogonal init. PPO uses tanh activation; SAC and CrossQ use relu. CrossQ uses Batch Renormalization in critics (no target networks).

Note on frame budgets: SAC uses higher update-to-data ratios, making it more sample-efficient but slower per frame than PPO (1-4M frames vs PPO's 4-10M). CrossQ uses UTD=1 (like PPO) but eliminates target network overhead, achieving ~700 fps — its frame budgets (3-7.5M) reflect this speed advantage. Scores may still be improving at cutoff.

v5 vs v4 Difficulty: Gymnasium MuJoCo v5 environments are significantly harder than v4. Key changes include:

• Updated physics engine with more accurate contact dynamics

• Revised reward functions with stricter success criteria

• Termination conditions more closely match real-world failure modes

Expect 10-30% lower scores compared to v4 benchmarks. See Gymnasium Migration Guide for details.

Spec Files

Spec Files (one file per algorithm, all envs via YAML anchors):

• PPO: ppo_mujoco_arc.yaml

• SAC: sac_mujoco_arc.yaml

• CrossQ: crossq_mujoco.yaml

Spec Variants: Each file has a base config (shared via YAML anchors) with per-env overrides:

SPEC_NAME	Envs	Key Config
ppo_mujoco_arc	HalfCheetah, Walker, Humanoid, HumanoidStandup	Base: gamma=0.99, lam=0.95, lr=3e-4
ppo_mujoco_longhorizon_arc	Reacher, Pusher	gamma=0.997, lam=0.97, lr=2e-4, entropy=0.001
ppo_{env}_arc	Ant, Hopper, Swimmer, IP, IDP	Per-env tuned (gamma, lam, lr)
sac_mujoco_arc	(generic, use with -s flags)	Base: gamma=0.99, iter=4, lr=3e-4, [256,256]
sac_{env}_arc	All 11 envs	Per-env tuned (iter, gamma, lr, net size)
crossq_mujoco	(generic base)	Base: gamma=0.99, iter=1, lr=1e-3, policy_delay=3
crossq_{env}	All 11 envs	Per-env tuned (critic width, actor LN)

Running Benchmarks

Reproduce: Copy SPEC_NAME and MAX_FRAME from the table below.

# PPO: env and max_frame are parameterized via -s flags
source .env && slm-lab run-remote --gpu -s env=ENV -s max_frame=MAX_FRAME \
  slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml SPEC_NAME train -n NAME

# SAC: env and max_frame are hardcoded per spec — no -s flags needed
source .env && slm-lab run-remote --gpu \
  slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml SPEC_NAME train -n NAME

# CrossQ: env and max_frame are hardcoded per spec — no -s flags needed
source .env && slm-lab run-remote --gpu \
  slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml SPEC_NAME train -n NAME

ENV	SPEC_NAME	MAX_FRAME
Ant-v5	ppo_ant_arc	10e6
	sac_ant_arc	2e6
	crossq_ant	3e6
HalfCheetah-v5	ppo_mujoco_arc	10e6
	sac_halfcheetah_arc	4e6
Hopper-v5	ppo_hopper_arc	4e6
	sac_hopper_arc	3e6
Humanoid-v5	ppo_mujoco_arc	10e6
	sac_humanoid_arc	1e6
HumanoidStandup-v5	ppo_mujoco_arc	4e6
	sac_humanoid_standup_arc	1e6
InvertedDoublePendulum-v5	ppo_inverted_double_pendulum_arc	10e6
	sac_inverted_double_pendulum_arc	2e6
InvertedPendulum-v5	ppo_inverted_pendulum_arc	4e6
	sac_inverted_pendulum_arc	2e6
Pusher-v5	ppo_mujoco_longhorizon_arc	4e6
	sac_pusher_arc	1e6
Reacher-v5	ppo_mujoco_longhorizon_arc	4e6
	sac_reacher_arc	1e6
Swimmer-v5	ppo_swimmer_arc	4e6
	sac_swimmer_arc	2e6
Walker2d-v5	ppo_mujoco_arc	10e6
	sac_walker2d_arc	3e6

Remote setup: cp .env.example .env then set HF_TOKEN. See Remote Training for dstack config.

GPU strongly recommended for MuJoCo. These benchmarks run 4M-10M frames and take 1-4 hours on cloud GPU (L4/A10G). Local CPU training is not practical. Cloud GPUs via dstack are faster and often cheaper than running on local hardware.

Download and Replay

# List all available experiments (requires HF_REPO=SLM-Lab/benchmark in .env)
source .env && slm-lab list

# Download a specific experiment
source .env && slm-lab pull ppo_ant_arc

# Replay the trained agent
slm-lab run slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml ppo_ant_arc enjoy@data/ppo_ant_arc_ant_2026_02_12_190644/ppo_ant_arc_t0_spec.json

---

Results

Ant-v5

Docs | State: Box(105) | Action: Box(8) | Target: >2000

Settings: max_frame 10e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	2138.28	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_ant_arc	ppo_ant_arc_ant_2026_02_12_190644
SAC	✅	4942.91	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_ant_arc	sac_ant_arc_2026_02_11_225529
CrossQ	✅	4517.00	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_ant	crossq_ant_2026_03_01_102428

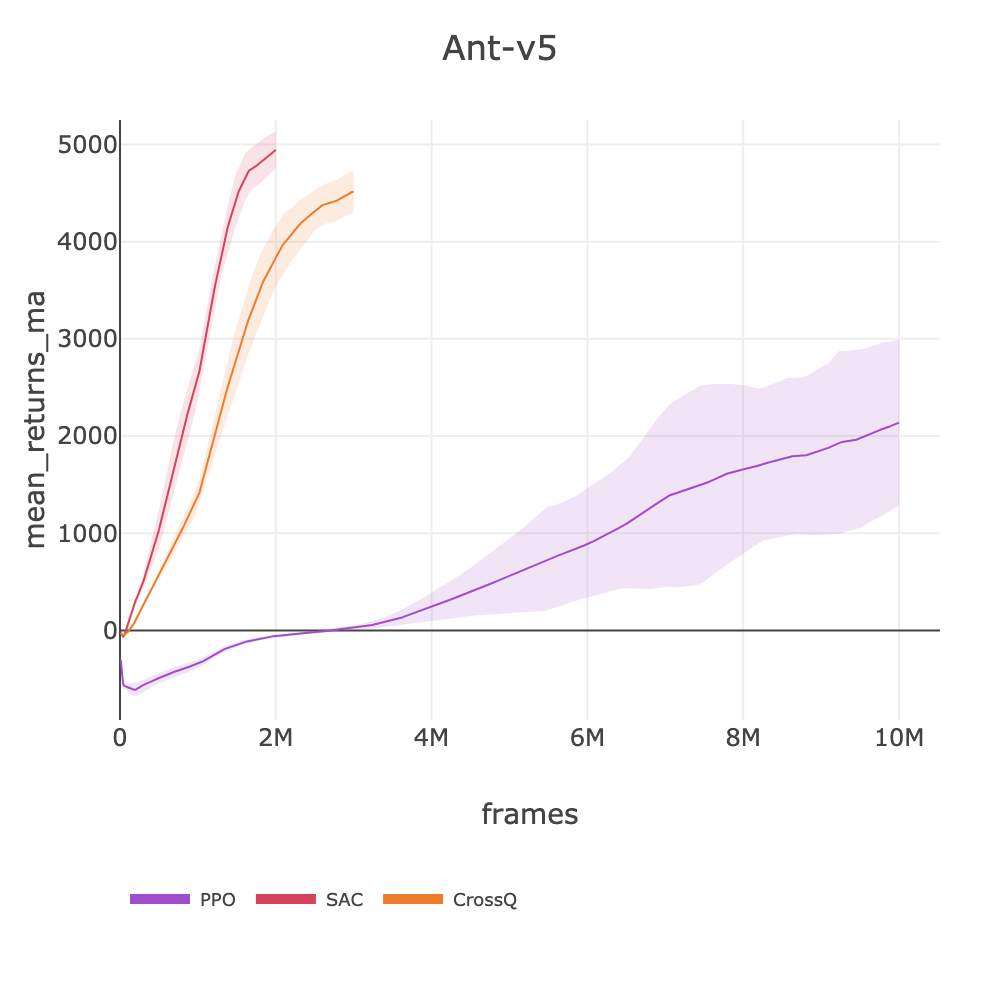

Ant-v5

HalfCheetah-v5

Docs | State: Box(17) | Action: Box(6) | Target: >5000

Settings: max_frame 10e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	6240.68	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_mujoco_arc	ppo_mujoco_arc_halfcheetah_2026_02_12_195553
SAC	✅	9815.16	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_halfcheetah_arc	sac_halfcheetah_4m_i2_arc_2026_02_14_185522
CrossQ	✅	8616.52	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_halfcheetah	crossq_halfcheetah_2026_03_01_101317

HalfCheetah-v5

Hopper-v5

Docs | State: Box(11) | Action: Box(3) | Target: ~2000

Settings: max_frame 4e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	⚠️	1653.74	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_hopper_arc	ppo_hopper_arc_hopper_2026_02_12_222206
SAC	⚠️	1416.52	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_hopper_arc	sac_hopper_3m_i4_arc_2026_02_14_185434
CrossQ	⚠️	1168.53	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_hopper	crossq_hopper_2026_02_21_101148

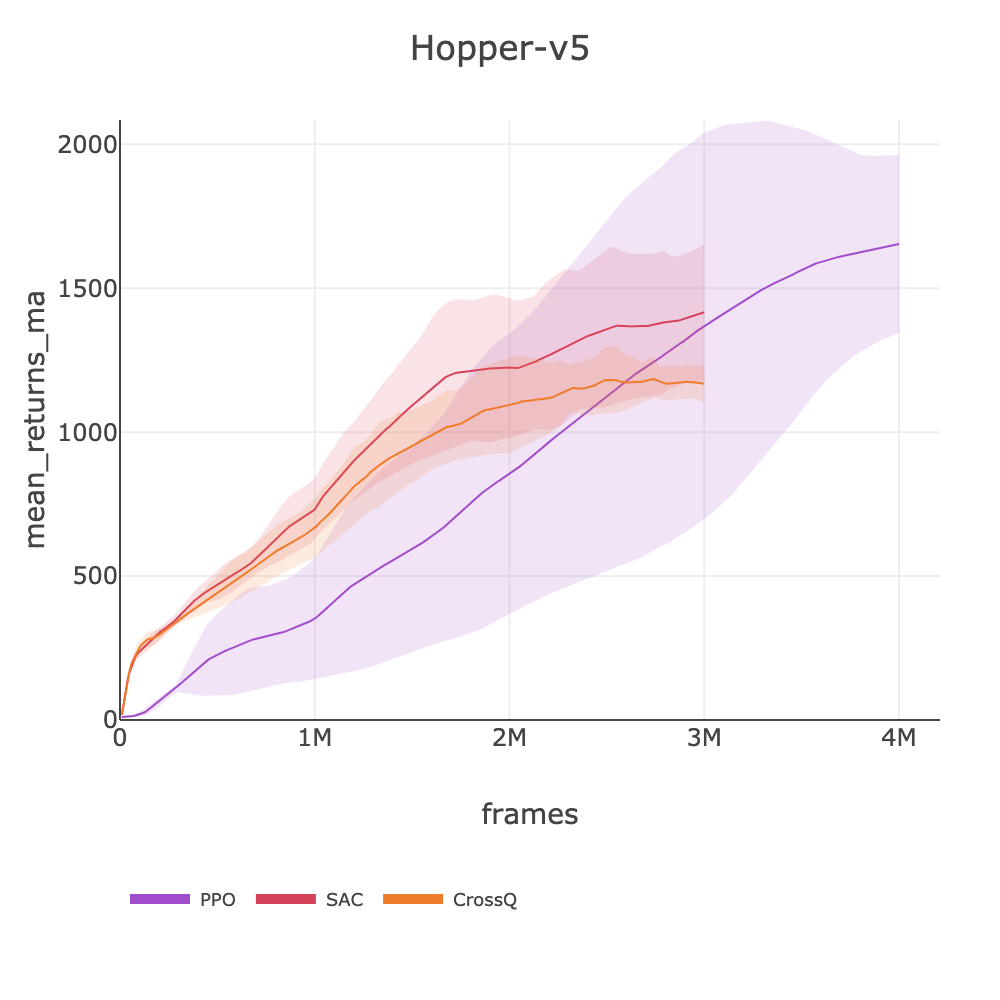

Hopper-v5

Humanoid-v5

Docs | State: Box(348) | Action: Box(17) | Target: >1000

Settings: max_frame 10e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	2661.26	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_mujoco_arc	ppo_mujoco_arc_humanoid_2026_02_12_185439
SAC	✅	1989.65	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_humanoid_arc	sac_humanoid_arc_2026_02_12_020016
CrossQ	✅	1755.29	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_humanoid	crossq_humanoid_2026_03_01_165208

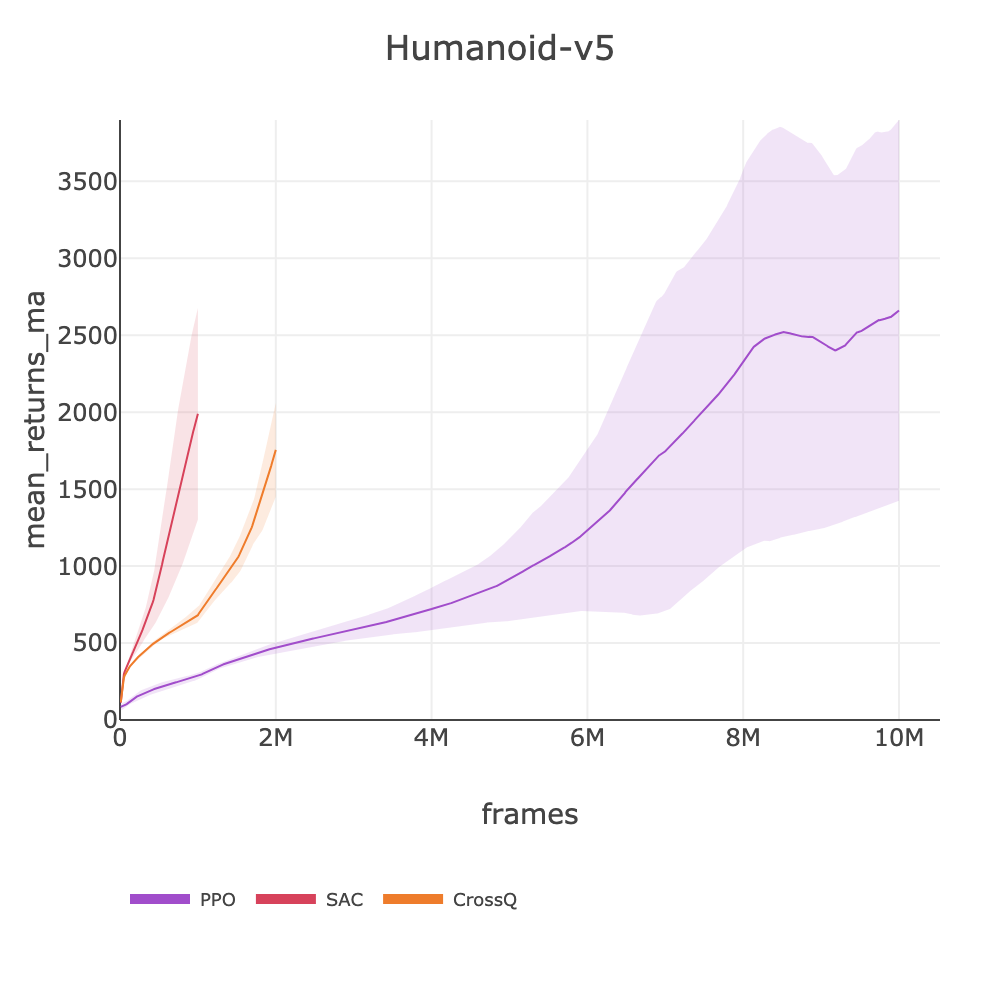

Humanoid-v5

HumanoidStandup-v5

Docs | State: Box(348) | Action: Box(17) | Target: >100k

Settings: max_frame 4e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	150104.59	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_mujoco_arc	ppo_mujoco_arc_humanoidstandup_2026_02_12_115050
SAC	✅	137357.00	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_humanoid_standup_arc	sac_humanoid_standup_arc_2026_02_12_225150
CrossQ	✅	150912.66	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_humanoid_standup	crossq_humanoid_standup_2026_02_28_184305

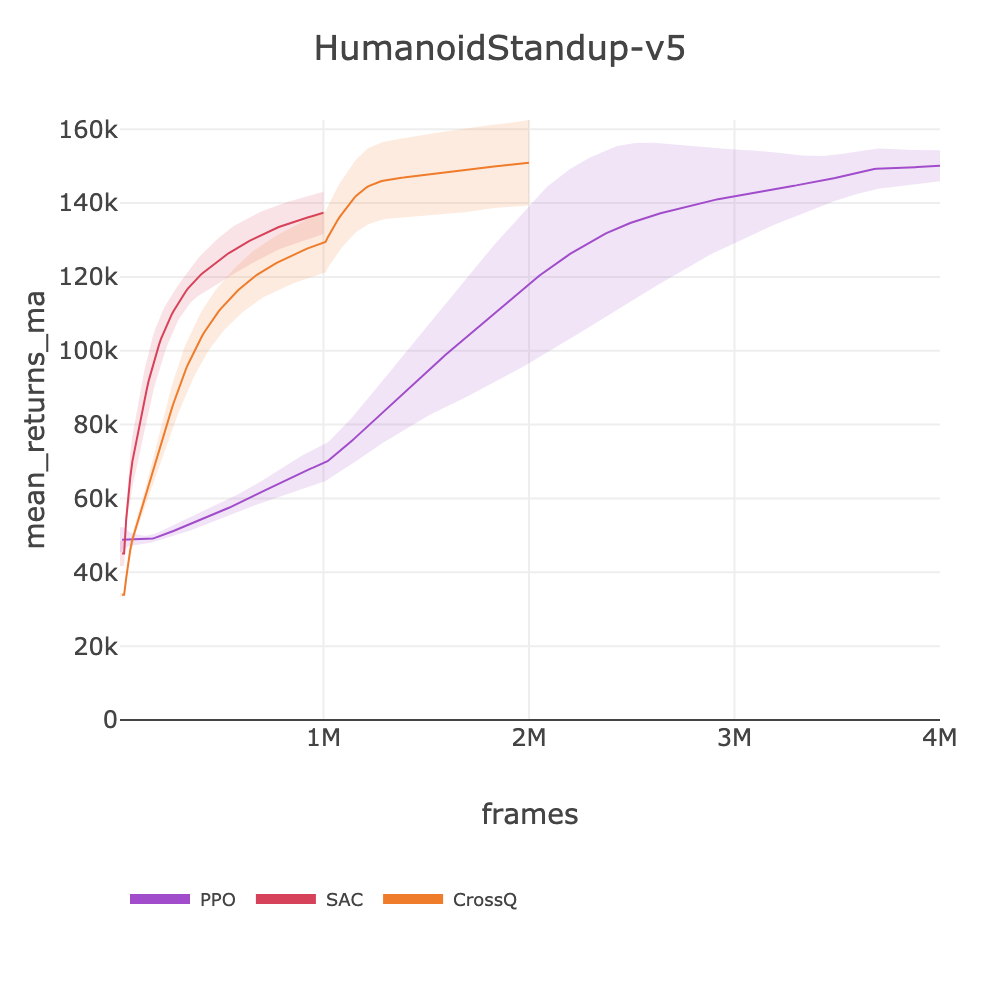

HumanoidStandup-v5

InvertedDoublePendulum-v5

Docs | State: Box(9) | Action: Box(1) | Target: ~8000

Settings: max_frame 10e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	8383.76	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_inverted_double_pendulum_arc	ppo_inverted_double_pendulum_arc_inverteddoublependulum_2026_02_12_225231
SAC	✅	9032.67	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_inverted_double_pendulum_arc	sac_inverted_double_pendulum_arc_2026_02_12_025206
CrossQ	✅	8027.38	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_inverted_double_pendulum	crossq_inverted_double_pendulum_2026_03_01_101354

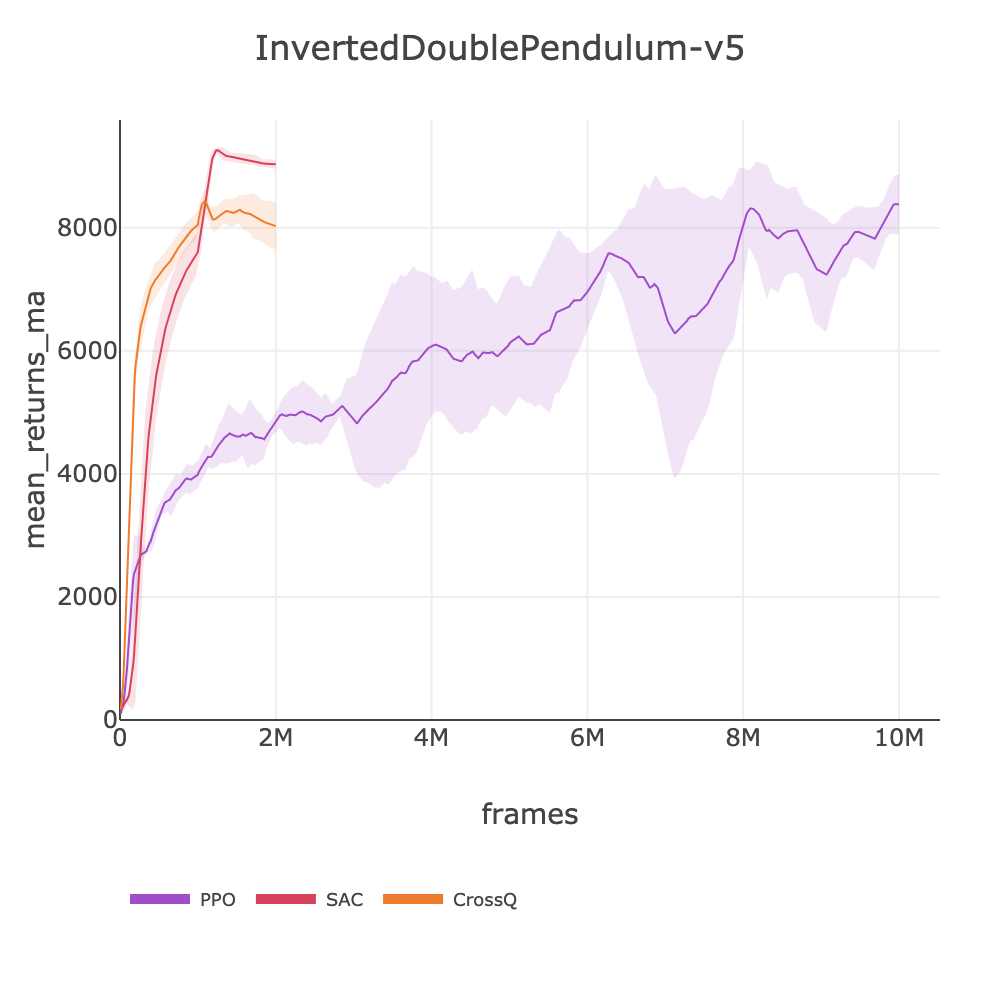

InvertedDoublePendulum-v5

InvertedPendulum-v5

Docs | State: Box(4) | Action: Box(1) | Target: ~1000

Settings: max_frame 4e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	949.94	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_inverted_pendulum_arc	ppo_inverted_pendulum_arc_invertedpendulum_2026_02_12_062037
SAC	✅	928.43	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_inverted_pendulum_arc	sac_inverted_pendulum_arc_2026_02_12_225503
CrossQ	⚠️	877.83	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_inverted_pendulum	crossq_inverted_pendulum_2026_02_28_184348

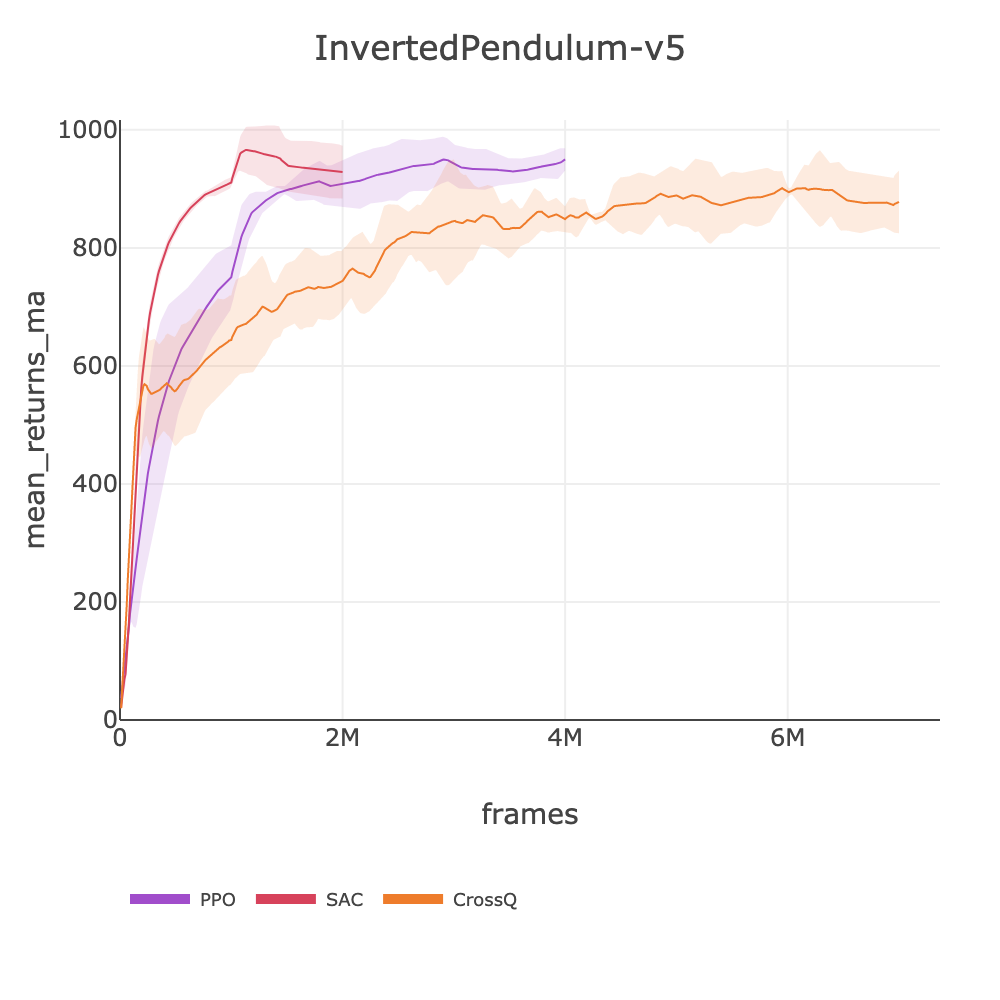

InvertedPendulum-v5

Pusher-v5

Docs | State: Box(23) | Action: Box(7) | Target: >-50

Settings: max_frame 4e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	-49.59	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_mujoco_longhorizon_arc	ppo_mujoco_longhorizon_arc_pusher_2026_02_12_222228
SAC	✅	-43.00	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_pusher_arc	sac_pusher_arc_2026_02_12_053603
CrossQ	✅	-37.08	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_pusher	crossq_pusher_2026_02_21_134637

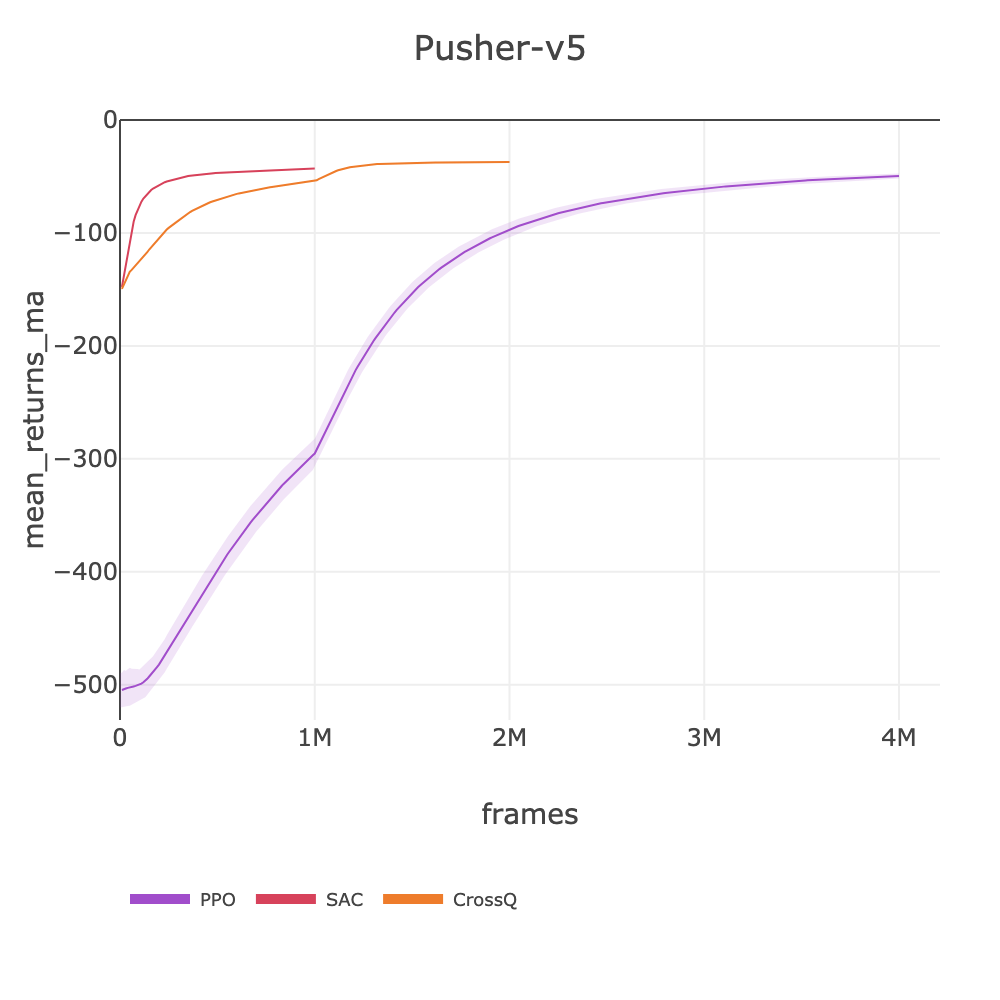

Pusher-v5

Reacher-v5

Docs | State: Box(10) | Action: Box(2) | Target: >-10

Settings: max_frame 4e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	-5.03	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_mujoco_longhorizon_arc	ppo_mujoco_longhorizon_arc_reacher_2026_02_12_115033
SAC	✅	-6.31	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_reacher_arc	sac_reacher_arc_2026_02_12_055200
CrossQ	✅	-5.65	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_reacher	crossq_reacher_2026_02_28_184304

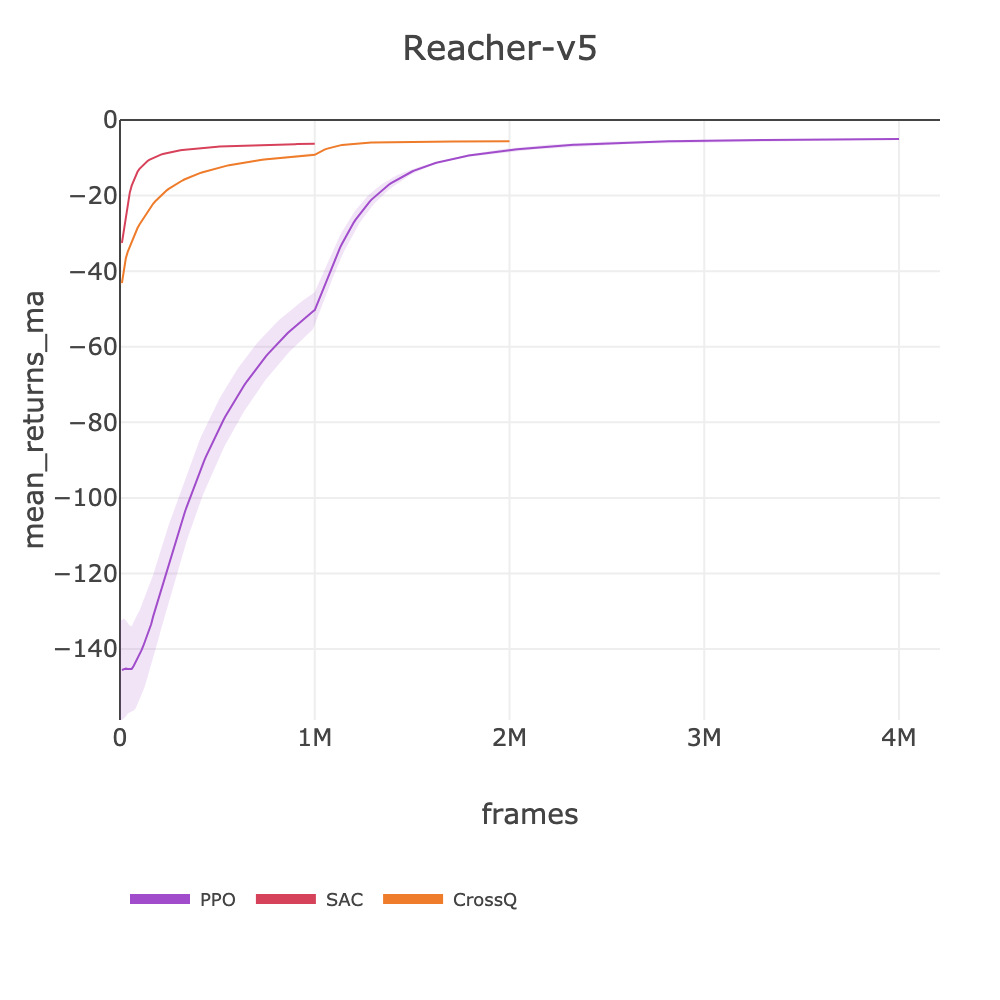

Reacher-v5

Swimmer-v5

Docs | State: Box(8) | Action: Box(2) | Target: >200

Settings: max_frame 4e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	282.44	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_swimmer_arc	ppo_swimmer_arc_swimmer_2026_02_12_100445
SAC	✅	301.34	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_swimmer_arc	sac_swimmer_arc_2026_02_12_054349
CrossQ	✅	221.12	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_swimmer	crossq_swimmer_2026_02_21_184204

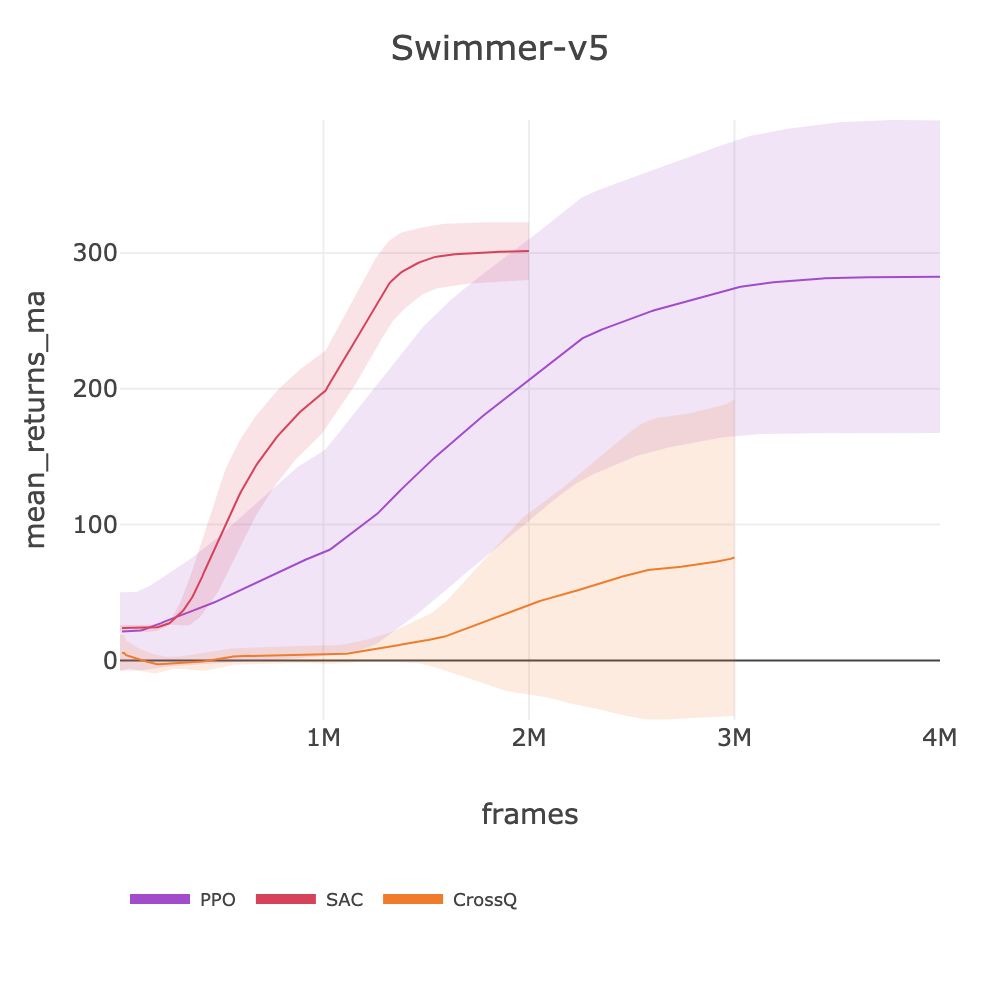

Swimmer-v5

Walker2d-v5

Docs | State: Box(17) | Action: Box(6) | Target: >3500

Settings: max_frame 10e6 | num_envs 16 | max_session 4 | log_frequency 1e4

Algorithm	Status	MA	SPEC_FILE	SPEC_NAME	HF Data
PPO	✅	4378.62	slm_lab/spec/benchmark_arc/ppo/ppo_mujoco_arc.yaml	ppo_mujoco_arc	ppo_mujoco_arc_walker2d_2026_02_12_190312
SAC	⚠️	3123.66	slm_lab/spec/benchmark_arc/sac/sac_mujoco_arc.yaml	sac_walker2d_arc	sac_walker2d_3m_i4_arc_2026_02_14_185550
CrossQ	✅	4389.62	slm_lab/spec/benchmark/crossq/crossq_mujoco.yaml	crossq_walker2d	crossq_walker2d_2026_02_28_184343

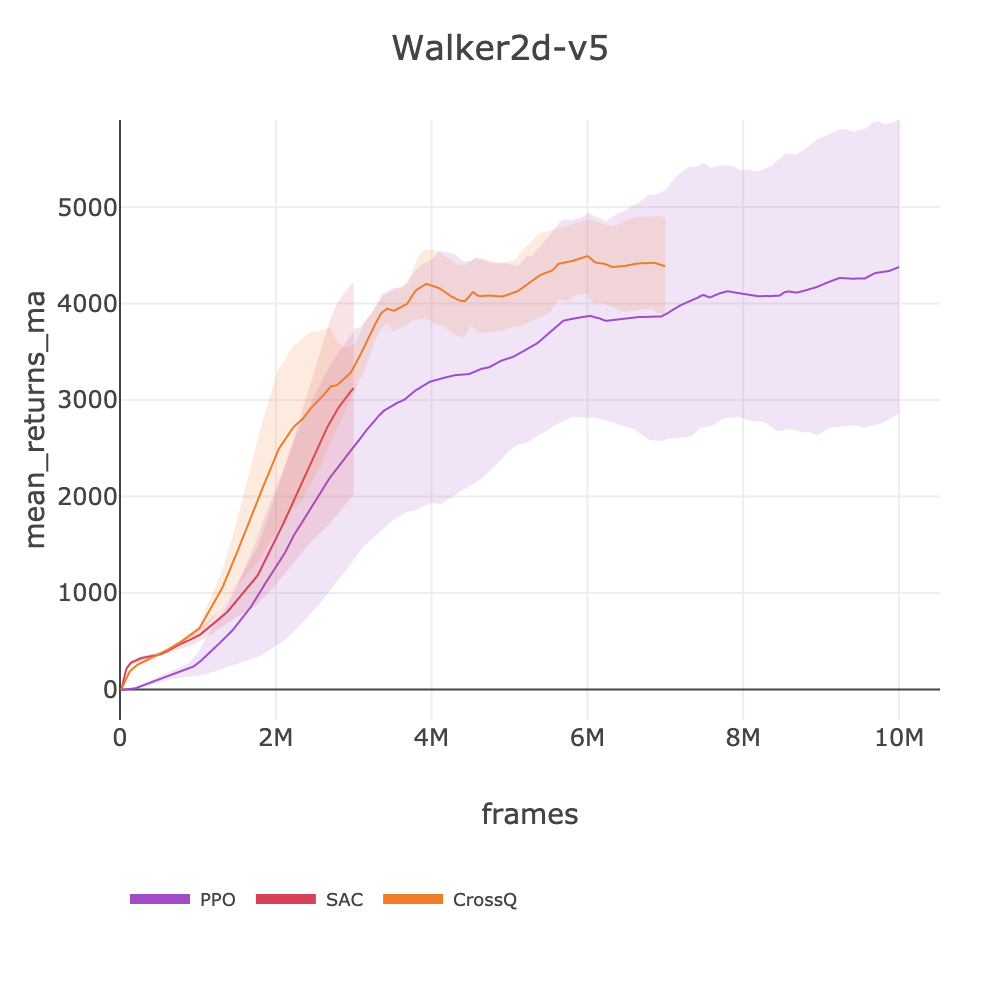

Walker2d-v5

Legend: ✅ Solved | ⚠️ Close (>80%) | ❌ Failed

---

CrossQ Wall-Clock Speedup vs SAC

CrossQ eliminates target networks via cross batch normalization, enabling UTD=1 at ~700 fps — 3.5–6.7x faster than SAC on the same hardware.

Env	CrossQ FPS	SAC FPS	Speedup
HalfCheetah-v5	705	200	3.5x
Hopper-v5	693	104	6.7x
Walker2d-v5	~700	104	6.7x
Ant-v5	~700	200	3.5x
Humanoid-v5	~350	53	6.6x
HumanoidStandup-v5	340	53	6.4x

Measured on RTX 3090. CrossQ achieves comparable scores at significantly lower wall-clock time.

---

Historical Results (v4)

Roboschool Results (v4) - click to expand

Deprecated: Roboschool is abandoned (MuJoCo became free in 2022). These v4 results are preserved for historical reference only. Use Gymnasium MuJoCo environments for new work.

Environment mapping: RoboschoolHopper-v1 → Hopper-v5, RoboschoolHalfCheetah-v1 → HalfCheetah-v5, etc.

• Upload PR #427

• Google Drive data

Env. \ Alg.	A2C (GAE)	A2C (n-step)	PPO	SAC
RoboschoolAnt	787	1396	1843	2915
RoboschoolHalfCheetah	712	439	1960	2497
RoboschoolHopper	710	285	2042	2045
RoboschoolInvertedDoublePendulum	996	4410	8076	8085
RoboschoolInvertedPendulum	995	978	986	941
RoboschoolReacher	12.9	10.16	19.51	19.99
RoboschoolWalker2d	280	220	1660	1894
RoboschoolHumanoid	99.31	54.58	2388	2621*

Episode score at the end of training. Reported scores are the average over the last 100 checkpoints, averaged over 4 Sessions. Results marked with * required 50M-100M frames using async SAC.
